1：前言

最近对u-boot下的代码以及linux下的dts代码进行了查看与学习，在项目中使用了8核arm处理器，为了实现如何从从核启动linux而非主核启动，进行了部分总结如下：现在拟将8核分为0-3与4-7核分别交给不同的操作系统，例如我用0-3核进行国产操作系统的启动，而同时4-7核进行linux的启动，为了实现这个操作我会现在linux的dts文件中关闭一些不需要的外设用来节省内存，并且将核0-3设置为 “status = disabled”进行失能操作，以确保linux使用的是4-7核，具体实现通过下文展示。

本篇笔记是通过学习

        1:《ARMv8 Cortex-a 编程向导手册学习_7.AArch64 异常处理_aarch64 arm文档-CSDN博客》

所做的笔记

2：Boot启动linux内核流程

1：说在前面：

        在某些特定场景中，常需将多核处理器划分为不同集群以运行异构操作系统。例如，在安全敏感领域，国产实时操作系统负责关键任务，而Linux处理通用计算。本文基于8核ARMv8处理器，探讨如何将核0-3分配给国产OS，核4-7运行Linux，并实现从从核（如核4）启动Linux的完整流程。

技术挑战

  1. 核隔离：需通过DTS配置禁用核0-3，避免Linux调度器误触。

  2. 从核启动：传统U-Boot默认从主核（核0）启动，需修改启动流程实现从核跳转。

  3. 资源预留：关闭Linux侧非必要外设（如GPU/PCIe），防止内存冲突。

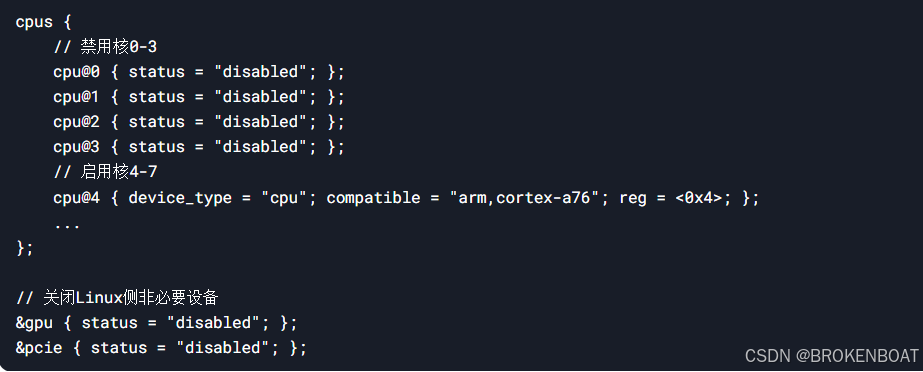

修改后的DTS关键片段

2：Boot启动Linux内核流程

与传统启动流程的差异

步骤传统流程多核隔离启动
核初始化所有核由主核唤醒仅核4-7由U-Boot激活
DTB传递主核直接加载DTB需动态修改DTB的cpu-map节点
异常级别切换主核从EL3跳转EL2从核需绕过主核锁机制

3：关键代码分析

1）：do_boota函数
int do_boota(struct cmd_tbl *cmdtp, int flag, int argc, char *const argv[])
{
	struct bootm_info bmi;
	int states;
	int ret;

	/* Consume 'booti' */
	argc--; argv++;

	bootm_init(&bmi);
	if (argc)
		bmi.addr_img = argv[0];
	if (argc > 1)
		bmi.conf_ramdisk = argv[1];
	if (argc > 2)
		bmi.conf_fdt = argv[2];
	bmi.boot_progress = true;
	bmi.cmd_name = "booti";
	/* do not set up argc and argv[] since nothing uses them */

	if (booti_start(&bmi))
		return 1;

	/*
	 * We are doing the BOOTM_STATE_LOADOS state ourselves, so must
	 * disable interrupts ourselves
	 */
	bootm_disable_interrupts();

	images.os.os = IH_OS_LINUX;
	if (IS_ENABLED(CONFIG_RISCV_SMODE))
		images.os.arch = IH_ARCH_RISCV;
	else if (IS_ENABLED(CONFIG_ARM64))
		images.os.arch = IH_ARCH_ARM64;

	states = BOOTM_STATE_MEASURE | BOOTM_STATE_OS_PREP |
		BOOTM_STATE_OS_FAKE_GO | BOOTM_STATE_OS_GO;
	if (IS_ENABLED(CONFIG_SYS_BOOT_RAMDISK_HIGH))
		states |= BOOTM_STATE_RAMDISK;

	ret = bootm_run_states(&bmi, states);

	return ret;
}

第一步调用do_boota函数其中关键点有如下几点：

        1：images.os.os = IH_OS_LINUX;（告知目前要启动的系统镜像image的是linux）

        2：ret = bootm_run_states(&bmi, states); 主要关注status中的BOOTM_STATE_OS_PREP |
        BOOTM_STATE_OS_FAKE_GO | BOOTM_STATE_OS_GO;这三个参数

2）：booti_start函数
static int booti_start(struct bootm_info *bmi)
{
	struct bootm_headers *images = bmi->images;
	int ret;
	ulong ld;
	ulong relocated_addr;
	ulong image_size;
	uint8_t *temp;
	ulong dest;
	ulong dest_end;
	unsigned long comp_len;
	unsigned long decomp_len;
	int ctype;

	ret = bootm_run_states(bmi, BOOTM_STATE_START);

	/* Setup Linux kernel Image entry point */
	if (!bmi->addr_img) {
		ld = image_load_addr;
		debug("*  kernel: default image load address = 0x%08lx\n",
				image_load_addr);
	} else {
		ld = hextoul(bmi->addr_img, NULL);
		debug("*  kernel: cmdline image address = 0x%08lx\n", ld);
	}

	temp = map_sysmem(ld, 0);
	ctype = image_decomp_type(temp, 2);
	if (ctype > 0) {
		dest = env_get_ulong("kernel_comp_addr_r", 16, 0);
		comp_len = env_get_ulong("kernel_comp_size", 16, 0);
		if (!dest || !comp_len) {
			puts("kernel_comp_addr_r or kernel_comp_size is not provided!\n");
			return -EINVAL;
		}
		if (dest < gd->ram_base || dest > gd->ram_top) {
			puts("kernel_comp_addr_r is outside of DRAM range!\n");
			return -EINVAL;
		}

		debug("kernel image compression type %d size = 0x%08lx address = 0x%08lx\n",
			ctype, comp_len, (ulong)dest);
		decomp_len = comp_len * 10;
		ret = image_decomp(ctype, 0, ld, IH_TYPE_KERNEL,
				 (void *)dest, (void *)ld, comp_len,
				 decomp_len, &dest_end);
		if (ret)
			return ret;
		/* dest_end contains the uncompressed Image size */
		memmove((void *) ld, (void *)dest, dest_end);
	}
	unmap_sysmem((void *)ld);

	ret = booti_setup(ld, &relocated_addr, &image_size, false);
	if (ret)
		return 1;

	/* Handle BOOTM_STATE_LOADOS */
	if (relocated_addr != ld) {
		printf("Moving Image from 0x%lx to 0x%lx, end=0x%lx\n", ld,
		       relocated_addr, relocated_addr + image_size);
		memmove((void *)relocated_addr, (void *)ld, image_size);
	}

	images->ep = relocated_addr;
	images->os.start = relocated_addr;
	images->os.end = relocated_addr + image_size;

	lmb_reserve(images->ep, le32_to_cpu(image_size), LMB_NONE);

	/*
	 * Handle the BOOTM_STATE_FINDOTHER state ourselves as we do not
	 * have a header that provide this informaiton.
	 */
	if (bootm_find_images(image_load_addr, bmi->conf_ramdisk, bmi->conf_fdt,
			      relocated_addr, image_size))
		return 1;

	return 0;
}

该函数作用如下:

        1:通过bootm_run_states(bmi, BOOTM_STATE_START)函数执行BOOTM_STATE_START阶段

        2：设置ep的image_load_addr;也就是系统的镜像入口

        3：booti_setup该函数作用为判断系统镜像文件是否为linux镜像

        4：bootm_find_images该函数是去查找对应dtb文件

        5：该函数的主要作用是去用于初始化image的相关参数

3）：bootm_run_states(该函数非常重要)
int bootm_run_states(struct bootm_info *bmi, int states)
{
	struct bootm_headers *images = bmi->images;
	boot_os_fn *boot_fn;
	ulong iflag = 0;
	int ret = 0, need_boot_fn;

	images->state |= states;

	/*
	 * Work through the states and see how far we get. We stop on
	 * any error.
	 */
	if (states & BOOTM_STATE_START)
		ret = bootm_start();

	if (!ret && (states & BOOTM_STATE_PRE_LOAD))
		ret = bootm_pre_load(bmi->addr_img);

	if (!ret && (states & BOOTM_STATE_FINDOS))
		ret = bootm_find_os(bmi->cmd_name, bmi->addr_img);

	if (!ret && (states & BOOTM_STATE_FINDOTHER)) {
		ulong img_addr;

		img_addr = bmi->addr_img ? hextoul(bmi->addr_img, NULL)
			: image_load_addr;
		ret = bootm_find_other(img_addr, bmi->conf_ramdisk,
				       bmi->conf_fdt);
	}

	if (IS_ENABLED(CONFIG_MEASURED_BOOT) && !ret &&
	    (states & BOOTM_STATE_MEASURE))
		bootm_measure(images);

	/* Load the OS */
	if (!ret && (states & BOOTM_STATE_LOADOS)) {
		iflag = bootm_disable_interrupts();
		ret = bootm_load_os(images, 0);
		if (ret && ret != BOOTM_ERR_OVERLAP)
			goto err;
		else if (ret == BOOTM_ERR_OVERLAP)
			ret = 0;
	}

	/* Relocate the ramdisk */
#ifdef CONFIG_SYS_BOOT_RAMDISK_HIGH
	if (!ret && (states & BOOTM_STATE_RAMDISK)) {
		ulong rd_len = images->rd_end - images->rd_start;

		ret = boot_ramdisk_high(images->rd_start, rd_len,
					&images->initrd_start,
					&images->initrd_end);
		if (!ret) {
			env_set_hex("initrd_start", images->initrd_start);
			env_set_hex("initrd_end", images->initrd_end);
		}
	}
#endif
#if CONFIG_IS_ENABLED(OF_LIBFDT) && CONFIG_IS_ENABLED(LMB)
	if (!ret && (states & BOOTM_STATE_FDT)) {
		boot_fdt_add_mem_rsv_regions(images->ft_addr);
		ret = boot_relocate_fdt(&images->ft_addr, &images->ft_len);
	}
#endif

	/* From now on, we need the OS boot function */
	if (ret)
		return ret;
	boot_fn = bootm_os_get_boot_func(images->os.os);
	need_boot_fn = states & (BOOTM_STATE_OS_CMDLINE |
			BOOTM_STATE_OS_BD_T | BOOTM_STATE_OS_PREP |
			BOOTM_STATE_OS_FAKE_GO | BOOTM_STATE_OS_GO);
	if (boot_fn == NULL && need_boot_fn) {
		if (iflag)
			enable_interrupts();
		printf("ERROR: booting os '%s' (%d) is not supported\n",
		       genimg_get_os_name(images->os.os), images->os.os);
		bootstage_error(BOOTSTAGE_ID_CHECK_BOOT_OS);
		return 1;
	}

	/* Call various other states that are not generally used */
	if (!ret && (states & BOOTM_STATE_OS_CMDLINE))
		ret = boot_fn(BOOTM_STATE_OS_CMDLINE, bmi);
	if (!ret && (states & BOOTM_STATE_OS_BD_T))
		ret = boot_fn(BOOTM_STATE_OS_BD_T, bmi);
	if (!ret && (states & BOOTM_STATE_OS_PREP)) {
		int flags = 0;
		/* For Linux OS do all substitutions at console processing */
		if (images->os.os == IH_OS_LINUX)
			flags = BOOTM_CL_ALL;
		ret = bootm_process_cmdline_env(flags);
		if (ret) {
			printf("Cmdline setup failed (err=%d)\n", ret);
			ret = CMD_RET_FAILURE;
			goto err;
		}
		ret = boot_fn(BOOTM_STATE_OS_PREP, bmi);
	}

#ifdef CONFIG_TRACE
	/* Pretend to run the OS, then run a user command */
	if (!ret && (states & BOOTM_STATE_OS_FAKE_GO)) {
		char *cmd_list = env_get("fakegocmd");

		ret = boot_selected_os(BOOTM_STATE_OS_FAKE_GO, bmi, boot_fn);
		if (!ret && cmd_list)
			ret = run_command_list(cmd_list, -1, 0);
	}
#endif

	/* Check for unsupported subcommand. */
	if (ret) {
		printf("subcommand failed (err=%d)\n", ret);
		return ret;
	}

	/* Now run the OS! We hope this doesn't return */
	if (!ret && (states & BOOTM_STATE_OS_GO))
		ret = boot_selected_os(BOOTM_STATE_OS_GO, bmi, boot_fn);

	/* Deal with any fallout */
err:
	if (iflag)
		enable_interrupts();

	if (ret == BOOTM_ERR_UNIMPLEMENTED) {
		bootstage_error(BOOTSTAGE_ID_DECOMP_UNIMPL);
	} else if (ret == BOOTM_ERR_RESET) {
		printf("Resetting the board...\n");
		reset_cpu();
	}

	return ret;
}

该函数的关键点如下所示：

        1：代码会通过states & BOOTM_STATE_START 根据states的属性进行对应代码段函数

        2：

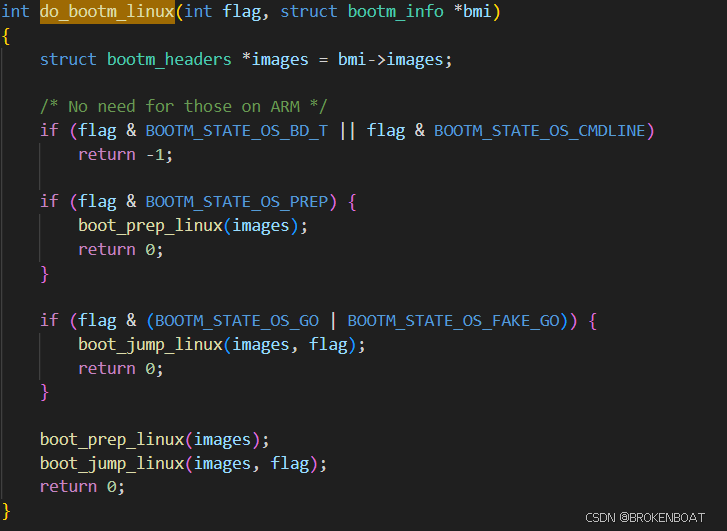

该代码之前的函数并不是很重要，boot_fn的主要功能就是去启动linux的镜像文件，在bootm_os_get_boot_func函数中会去直接调用boot.os功能,该函数中去调用do_bootm_linux函数

并且通过该函数中的boot_jump_linux进行linux的启动，具体修改对不同的处理器处理不同，具体根据芯片手册进行判断，具体修改在函数armv8_switch_to_el2中进行汇编代码修改。

4）：从核启动的修改点（提供思路，感兴趣的可以进行验证）
在armv8_switch_to_el2中强制指定从核ID（如核4）作为启动核：
armv8_switch_to_el2:
    mrs x0, mpidr_el1
    and x0, x0, #0xFF        // 提取CPU ID
    cmp x0, #4               // 仅允许核4启动
    b.eq 1f
    wfi                      // 其他核休眠
1:  bl  boot_jump_linux      // 核4继续执行

3：总结与展望

关键成果

        1：成功通过DTS隔离核0-3，Linux仅调度核4-7。

        2：修改U-Boot的启动流程，实现从核4启动Linux。

# 学习 # linux # 架构
